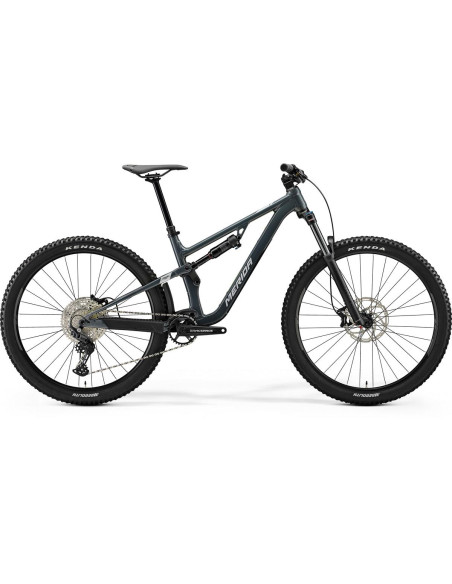

2022 Merida One Forty 400 MD Cool Grey/Silver
FRAME ONE-FORTY LITE III; 143 STR 29"; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR
SIZES XShort-Short-Mid-Long-XLong
FORK Suntour XCR34 LOR DS; Air; 140mm; Tapered; 51mm fork offset; 29x2.4" max WHS
SHOCK Rock Shox Deluxe Select+; lockout
GEARS 1 x 11
CRANKSET Shimano Deore M5100; 32 ATC
CRANK LENGTH 170 mm-S, 175 mm-M up
BOTTOM BRACKET Shimano BB52 BSA
CASSETTE Shimano Deore M5100; 11-51 ATC; 11 GER
CHAIN KMC X11
REAR DERAILLEUR Shimano Deore M5100 Shadow+
SHIFTER - REAR Shimano Deore M5100
DROPPER LEVER Shimano SL -MT500-IL
BRAKE - TEKTRO HD-M745; 4 piston
ROTOR - REAR Tektro TR203-35; 203 mm
HANDLEBAR MERIDA TEAM TR; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB
STEM MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD
STEM SIZE 50 mm all sizes
HEAD SET MERIDA-8151 1-1/8"-1.5" cartridge bearing set
SEAT POST MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L/XL: 200 SPT
SADDLE MERIDA COMP SL; V-mount
SPOKES Black stainless
HUB - FRONT Shimano MT400-B; 110x15 WHF; 32 SPH; Centerlock
. HUB - REAR Shimano MT400-B; 148x12 WHR; 32 SPH; Centerlock
AXLE - REAR MERIDA COMP TR; including removeable lever, 6 allen key
RIMS MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)
TYRE - REAR Kenda Regolith; 29x2.4"; wire
