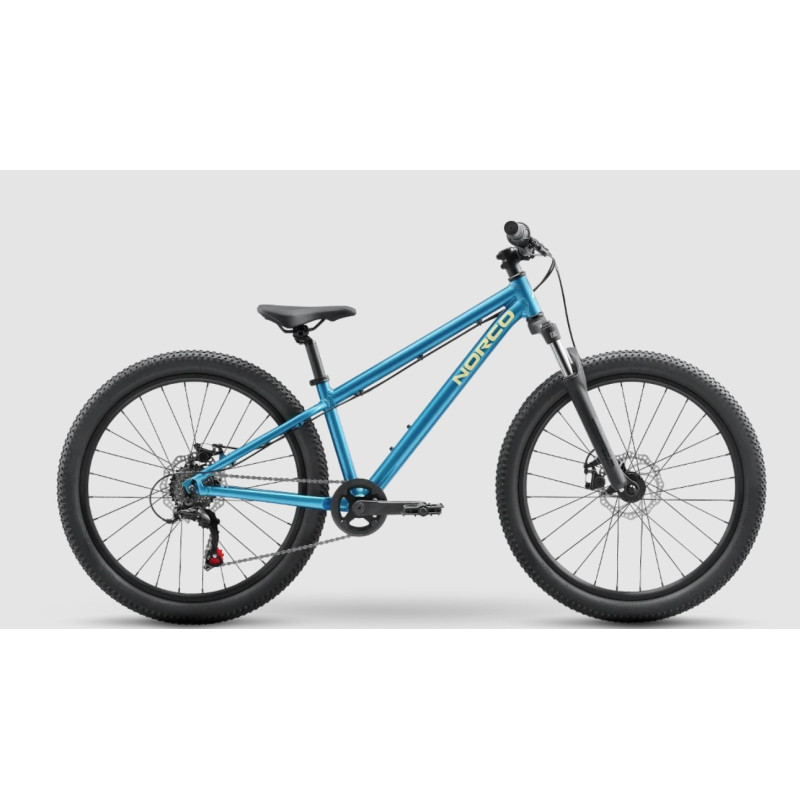

2025 Norco Storm 24 Blue

Frame

• Frame: Aluminium, 9x135mm QR, 24" Wheel Platform

• Fork: SR Suntour XCT Coil with Soft Spring and Preload Adjust, 80mm Travel, 9x100mm QR

Drivetrain

• Rear Derailleur: Shimano TZ-500, 6-Speed, Direct Mount

• Shifter: Shimano SL-RV200-6R, 6-Speed GripShift

• Cassette: Shimano MF-TZ500-6 Freewheel, 14-28T, 6-Speed

• Chain: KMC Z6

• Crankset: Alloy 3-Piece, 140mm, 28T Narrow-Wide

• Bottom Bracket: Sealed Bearing, ST 68mm

Brakes

• Front Brake: Tektro Aries Mechanical Disc Brake, Resin Pads

• Rear Brake: Tektro Aries Mechanical Disc Brake, Resin Pads

• Brake Levers: Tektro Aries Alloy Junior Levers with Reach Adjust

• Front Rotor: 160mm, 6-Bolt

• Rear Rotor: 160mm, 6-Bolt

Cockpit

• Handlebar: Alloy Junior Riser Bar, 600mm Width, 30mm Rise

• Stem: Alloy, 40mm Length, 31.8mm Clamp

• Grips: Norco Youth, 115mm Length

• Headset: External Cup Ball Bearing, 1-1/8" EC34

Seating

• Saddle: Norco Junior XC, Steel Rails

• Seatpost: Norco Alloy, 27.2mm, 250mm Length

• Seat Clamp: Norco Alloy Bolted, 31.8mm ID

Wheelset

• Rims: Aluminium Double Wall, 28h, 24" MTB

• Front Hub: Formula DC-1420, 9x100mm QR, 28h, 6-Bolt

• Rear Hub: Formula DC-31R-7S, 9x135mm QR, Freewheel, 28h, 6-Bolt

• Spokes: Stainless Steel with Brass Nipples, Black

Tyres

• Front Tyre: CY Trail, 24x2.25", Wire Bead

• Rear Tyre: CY Trail, 24x2.25", Wire Bead

Additional Information

• Pedals: Junior MTB Flat, 9/16"
